SM100+ Electric Tug

Moves heavy loads up to 1,200kg

The SM100+ is a battery operated electric tug suitable for use in a range of environments. At the press of a button the Hydraulic Coupler is engaged creating an unbreakable connection. This combined with the leveraged weight transfer system and 2 powerful drive motors makes it suitable for moving 1,200 kg loads even on slopes.

With an interchangeable battery, two powerful drive motors, two speed settings and automatic braking – the SM100+ is a multi-purpose electric tug that makes moving large or heavy wheeled loads easier and safer, particularly in busy or congested areas.


Features & Benefits:

  • Unbreakable connection method
  • Stops and controls the load
  • Very easy to use the Compact Tug
  • Works on uneven surfaces and slopes
  • Tug Turns at 90 degrees
  • Reduces risk to employees
  • Compact size for space restricted environments
  • No licence required

Safety Features

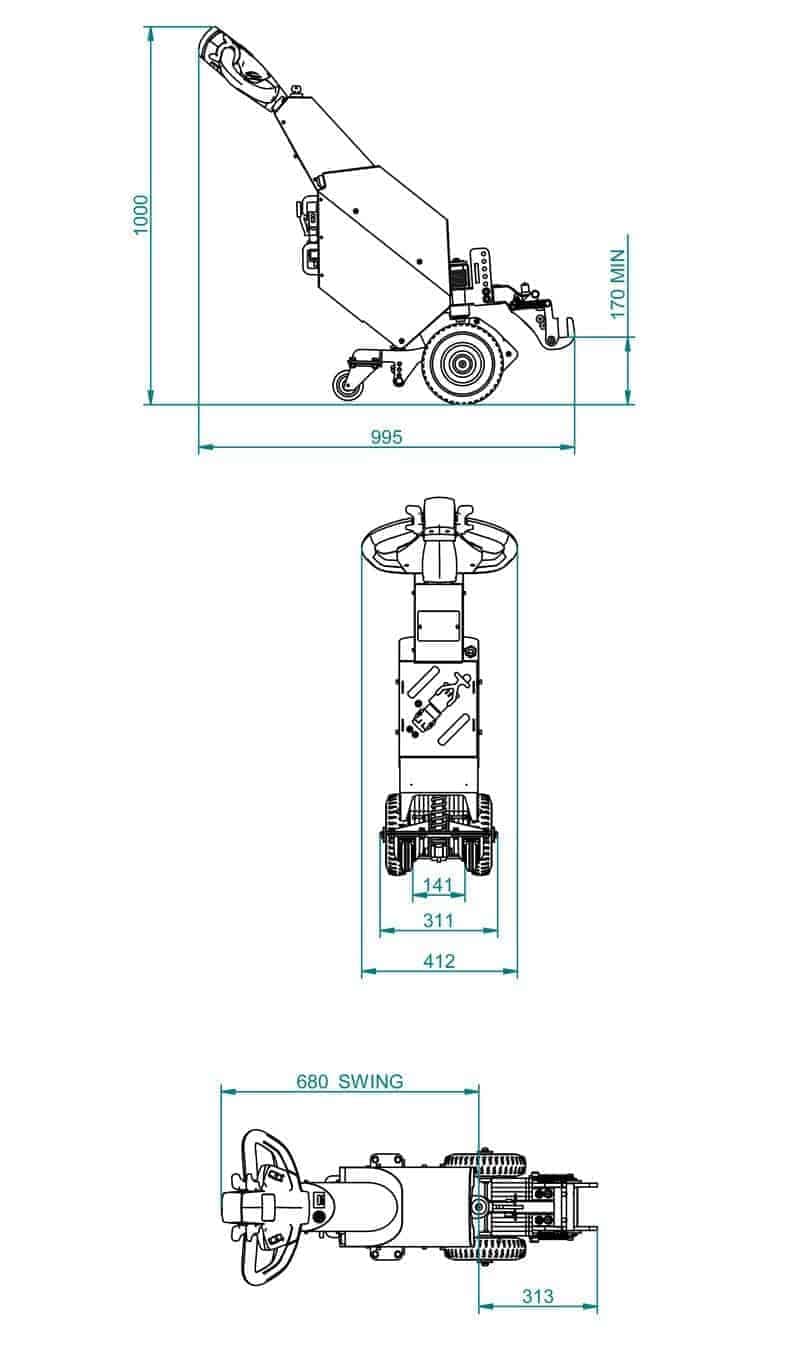

Technical Specification

  • Product code: SM100
  • Recommended load weight – Castors 1000 kg
  • Recommended load weight – Rails 4000 kg
  • Machine weight including battery: 80 kg
  • Drive type: Electric DC
  • Parking brake: Electromagnetic
  • Drive wheel type: Puncture-proof, non-marking
  • Drive motor power: 2 x 0.22 kW
  • Controller type: 110 DC Permanent
  • Variable machine speed: 0.1 km/h – 5 km/h
  • Patent Pending GB 1501160.4
