MP400 MasterPusher
Capable of moving loads up to 80,000kg on rails
The MasterPusher MP400 is designed to push loads on rails. Using leverage to gain traction, the single operator simply pushes the machine towards the load in order to start it moving. The impressive power originates from its AC drive motor and high torque gearbox whilst the automatic braking system and emergency stop button ensure high safety levels are maintained.
Features:
- Battery Monitoring System
- FEA tested steel chassis
- High-torque grearbox
- AC Drive Motor
- Self Adjusting Castor Guard
- Leveraged Weight Transfer
- Emergency Stop Button
- Anti Crush Button
Optional Extra’s
- Optional – Flashing safety light and motion bleeper
- Optional – Two speed selector switch
- Optional – Lithium battery
Safety Features
Warning Horn
Anti Crush Button
Emergency Stop Button
Technical Specification
- Product code: MP400
- Recommended load weight – Rails 2,000 kg
- Recommended load weight – Rails 80,000 kg
- Machine weight including battery: 214 kg
- Drive type: Electric AC
- Parking brake: Electromagnetic
- Drive wheel type: Industrial pneumatic
- Drive motor power: 2 kW
- Controller type: AC
- Variable machine speed: 0.1 km/h – 5 km/h

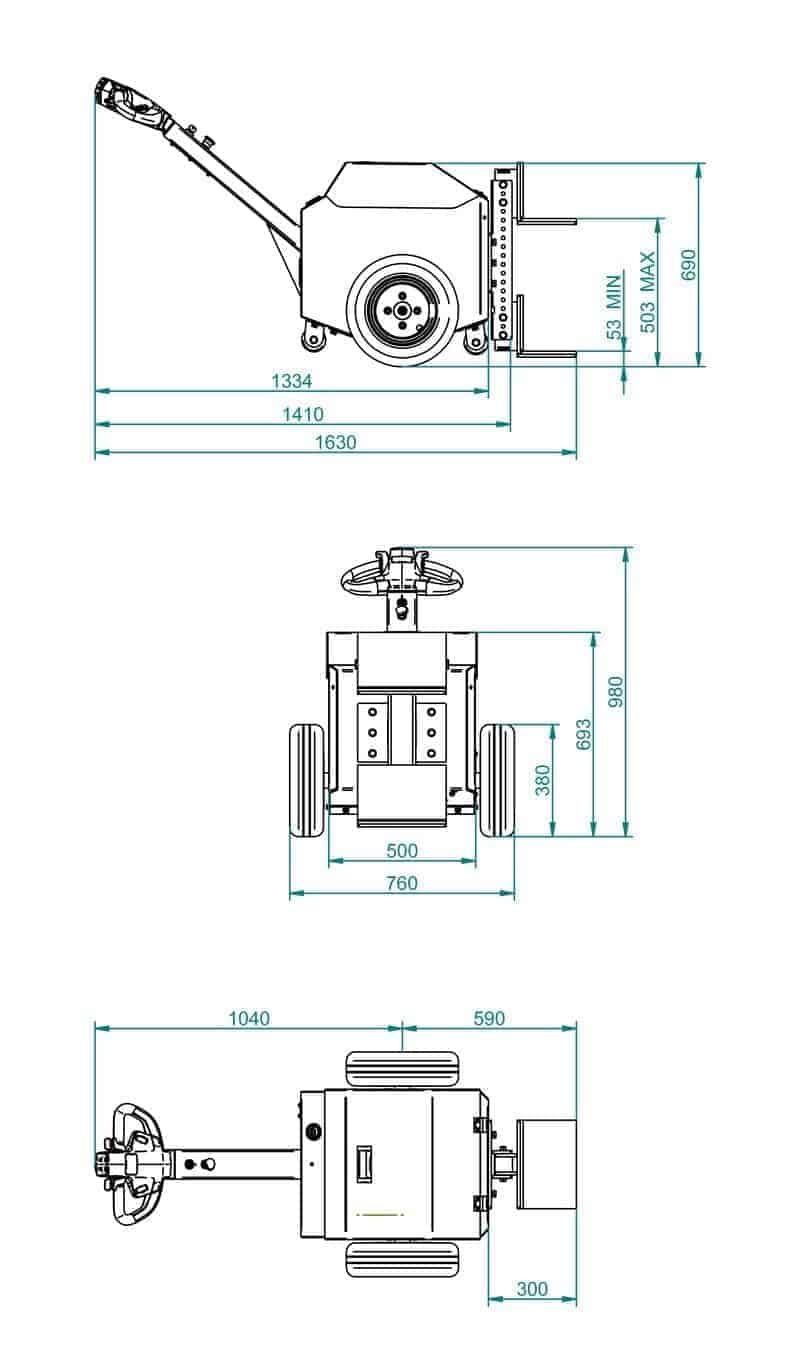

Dimensions
