AT200 Electric Tug
Moves loads up to 2,000kg
The AT200 TOW is perfect for safely towing loads where weight transfer is not possible, up to 2,000 kg. Attaching to any load with a draw bar, towing eye or ball hitch fitting is easy thanks to the coupling crawl function.
Featuring Power Steering, the operator can move the machine slowly and connect simultaneously.
Controlled start acceleration gets the load moving safely and power steering provides effortless manoeuvrability.
Benefits
- FEA Tested Steel Chassis
- 2 Drive Motors
- Internal Weight Packs
- Emergency Stop Button
- Automatic Tiller Cut Off
- Puncture Proof Tyres
Safety Features
Warning Horn
Anti Crush Button
Emergency Stop Button
Automatic Cut Off as tiller arm returns to vertical
Technical Specification
- Product code: AT200 TOW
- Recommended load weight – Castors 2000 kg
- Recommended load weight – Rails 8000 kg
- Machine weight including battery: 292 kg
- Drive type: Electric DC
- Parking brake: Electromagnetic
- Drive wheel type: Foam Filled
- Drive motor power: 2 x 0.4 kW
- Controller type: DC
- Variable machine speed: 0.1 km/h – 5.4 kph

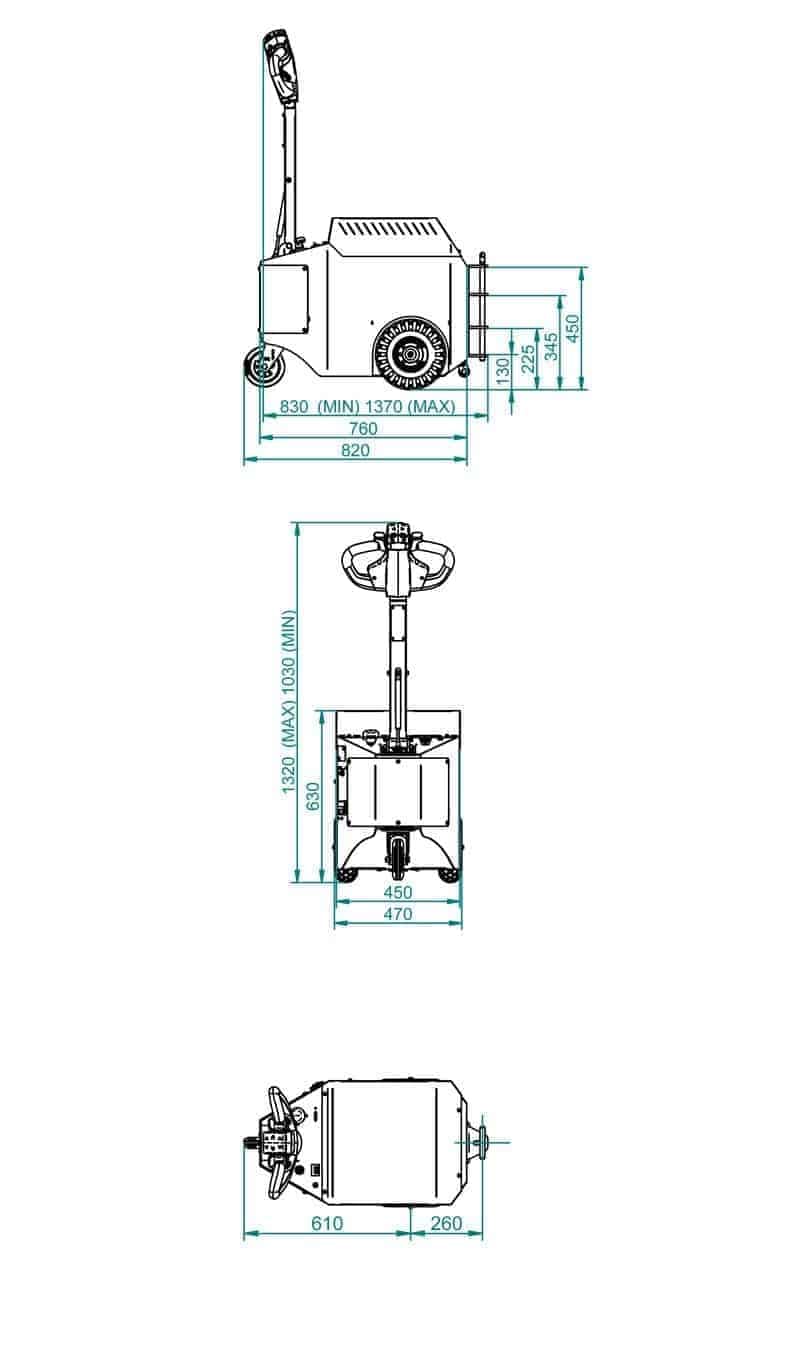

Dimensions
