SM100 Powered Tow Tug

Moves heavy loads up to 500kg

The SM100 TOW is a self-weighted electric tug unit which generates its own traction so it can tow loads up to 500 kg where weight transfer is not possible. It is ideal for loads fitted with a draw bar or towing eye.

Like all SmartMovers in the range, the SM100 TOW features two drive motors for power, an FEA tested steel chassis for strength and an interchangeable battery that allows it to be used 24 hours a day.

Benefits & Features

  • Battery monitoring system
  • FEA tested steel chassis
  • Steel Cover chassis
  • 2 Drive motors
  • Secure coupling
  • Internal weight packs

Safety Features

Technical Specification

Product code: SM100 TOW

Recommended load weight – Castors 1000 kg
Recommended load weight – Rails 4000 kg
Machine weight including battery 117 kg
Drive type: Electric DC
Parking brake: Electromagnetic
Drive wheel type: Puncture-proof, non-marking
Drive motor power: 2 x 0.22 kW
Controller type: 110 DC Permanent
Variable machine speed: 0.1 km/h – 5 km/h

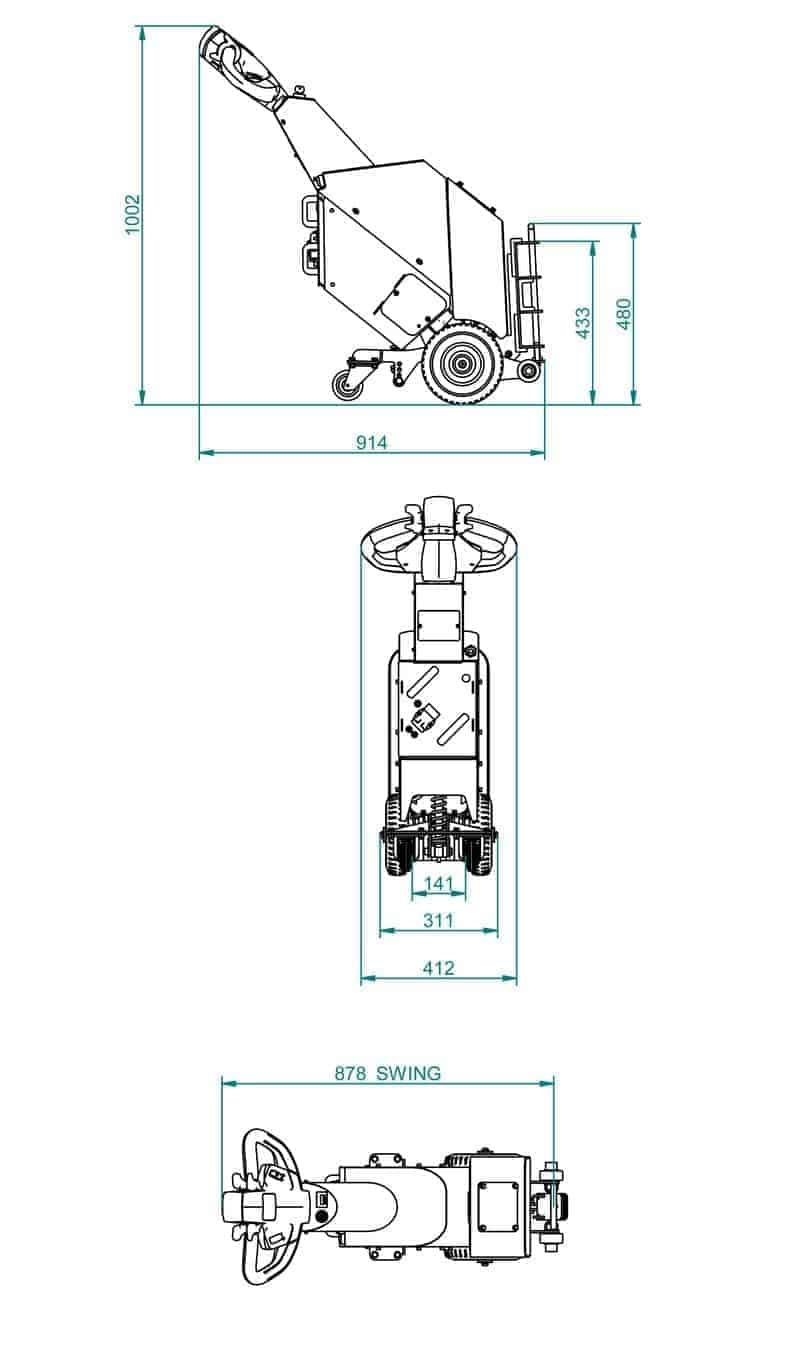

Dimensions
